XYZ Manipulators

UHV Su

itcase

SAES NEXTorr® NEG - ION pump in combination with Ferrovac Battery Powered Ion Pump Controller - we have established a partnership for the future of compact UHV technology!

NEG-ION pumps
online

catalogue and pricelist

Vacuum Chambers

Swiss UHV Technology since 1996

We are proud to support scientists throughout the world in their perpetual struggle towards and beyond the borders of todays knowledge.

Online catalogue and pricelist

Dear customers and partners

Ferrovac will be closed for public holidays on the following dates:

27 May to and including 29 May 2023

We will be there for you again from Tuesday, 30 May 2023.

The Ferrovac Magnetically Coupled Wobble Stick Manipulator - The Original

Magnetic coupling as the driving principle for wobble sticks was introduced by Urs Maier in the early 1990's.  Since then, Ferrovac magnetically driven wobble stick manipulators define the benchmark for delicate and precise manipulations in ultra high vacuum systems.

Due to the principle of magnetic force coupling, the motion of the shaft is not affected by the difference between atmospheric pressure and ultra high vacuum. The operator can guide the shaft of the wobblestick nearly force-free in a smooth and controlled way.

Magnetic coupling also minimizes the risk for leaks and ensure longer lifetimes compared to conventional wobble sticks employed with long bellows stacks for linear motion.

Magnetically driven wobblestick manipulators always allow for continuous rotation of the shaft.

Beware of cheap copies!

In recent years, the proven Ferrovac design has been copied by many of our competitors. While admittedly some of our competitor's wobble sticks are well made, others may not fulfill your expectations in terms of degassing, long lifetime and smoothness of motion. Note: We are servicing and refurbishing Ferrovac wobblesticks dating back to the years when we first introduced the design!

Off the shelf wobble sticks are in stock and available with lead times of a few days!

Motion & Manipulation

All our motion feedthroughs are magnetically driven. They are rugged, precise and have low outgassing rates upon movement. Our products are ideal for UHV applications down to the very low E-11 hPa (mbar) range.

Ferrovac Ultra High Vacuum Technology's combined load lock and docking station for our brand new inert gas shuttle was successfully installed at Luxembourg Institute of Science and Technology (LIST) by Claudio Weiss.

Congratulations Claudio and both, our engineering and production teams!

Urs Maier, CEO

IAKTHFIHELIOSIG

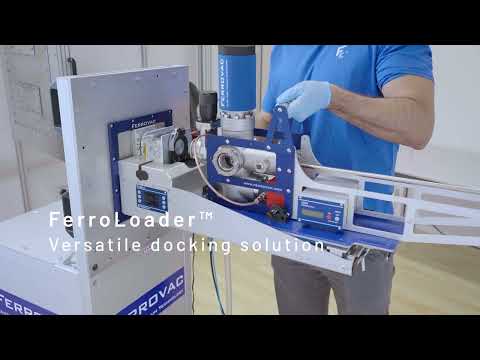

FerroLoader^TM Docking Kits for Helios

for more information,
see product catalog page

FerroLoader™ Docking Kit for Thermo Fisher Helios DualBeam FIB-SEM

Another good example of Ferrovac's excellent collaboration with Thermo Fisher Scientific!

This FerroLoader™ was recently installed to a Helios™ in Brno.

The video nicely shows how Thermo's new Inert Gas Shuttle (IGS) interfaces with the Ferrovac docking station.

With a few simple moves, the IGS can be exchanged with the Ultra High Vacuum Transfer Module (UHVCTM).

Equipped with a liquid nitrogen dewar for active sample cooling, thermal shields (CTD50SHIELDS) enshrouding the sample, as well as a temperature measuring kit, the Ultra High Vacuum Cryo Transfer Module (UHVCTM) enables transport of sensitive samples at cryogenic temperatures under true UHV conditions (E-11mbar).

The UHVCTM is, especially compact, lightweight, robust and easy to use.

Cryo Sample Receiver and Carrier with 13 electrical Contacts, arbitrary orientation

Wire up your devices on flag style plates!

Typical applications include low temperature scanning probe microscopy, transport measurements or simply the mounting of a temperature sensor directly to the sample.

RECOMCREC13V2

This particulair version of the EC13 sample receiver is optimized for cryogenic applications and can be loaded/unloaded in any kind of geometrical orientation (i.e. vertical, upside-down..).

The receiver is equipped with a lever mechanism, pressing the sample plate down onto the cold  surface. Locking is engaged by approximately a quarter turn using the pincer on the wobblestick used to handle the sample. By tightening the screw, the lever presses onto both sides of the sample plate, forcing it down.

An improved  thermal contact to the cooling surface is achieved and the temperature difference between the sample and the receiver is only about 2 Kelvin.

Loading/unloading of the sample and operation of the locking screw requires a WMG40 dual shaft wobblestick with PGWMS(OM) pincer.

SHOMEC13

Up to 13 electrical high-quality spring contacts for wiring up devices

The SHOMEC13 features a total of thirteen high-quality spring contacts mounted into an AlN-isolator. The shape and opening of the top plate and shield cover can be customised to your needs. A pocket underneath the sample mounting plate allows convenient installation of a temperature sensor

PBN Heater Assembly with Receiver for Flag Style Plates

HSOMPBN50

A 50W pyrolitic boron nitride heater in combination with a molybdenum receiver for flag style plates provides a reliable solution for sample annealing. A K-type thermocouple is mounted on the sample receiver.

HSOMPBN50 heaters can be implemented in fully configured heating stages including flange assembly with electrical feedthroughs. The HSOMPBN50 is also used in BOOMERAX manipulators and can be easily adapted to practically any commercially available XYZ manipulator.

Receiver for Flag Style Sample Plates with integrated PBN Heater

• Power: 100W (24V, 4.2A ~1000°C)
• Maximum temperature approx. 1000°C
• Thermocouple: Type K (chromel/alumel)
• Fully UHV compatible materials
• Power supply not included

Open Product Description
